Tuner Integration

Overview

The Tuner integration node automatically sends your completed call data (transcript, metadata, and call outcomes) to Tuner after each call finishes. This lets you monitor agent performance, run evaluations, and track quality trends without any custom code. Once the node is configured, you can also let Tuner call your agent with generated caller scenarios and score how it handles them — see Simulations below.

Prerequisites

A Tuner account with an active workspace
A Voice AiLunaPro voice agent workflow

Setup

1. Create an agent in Tuner

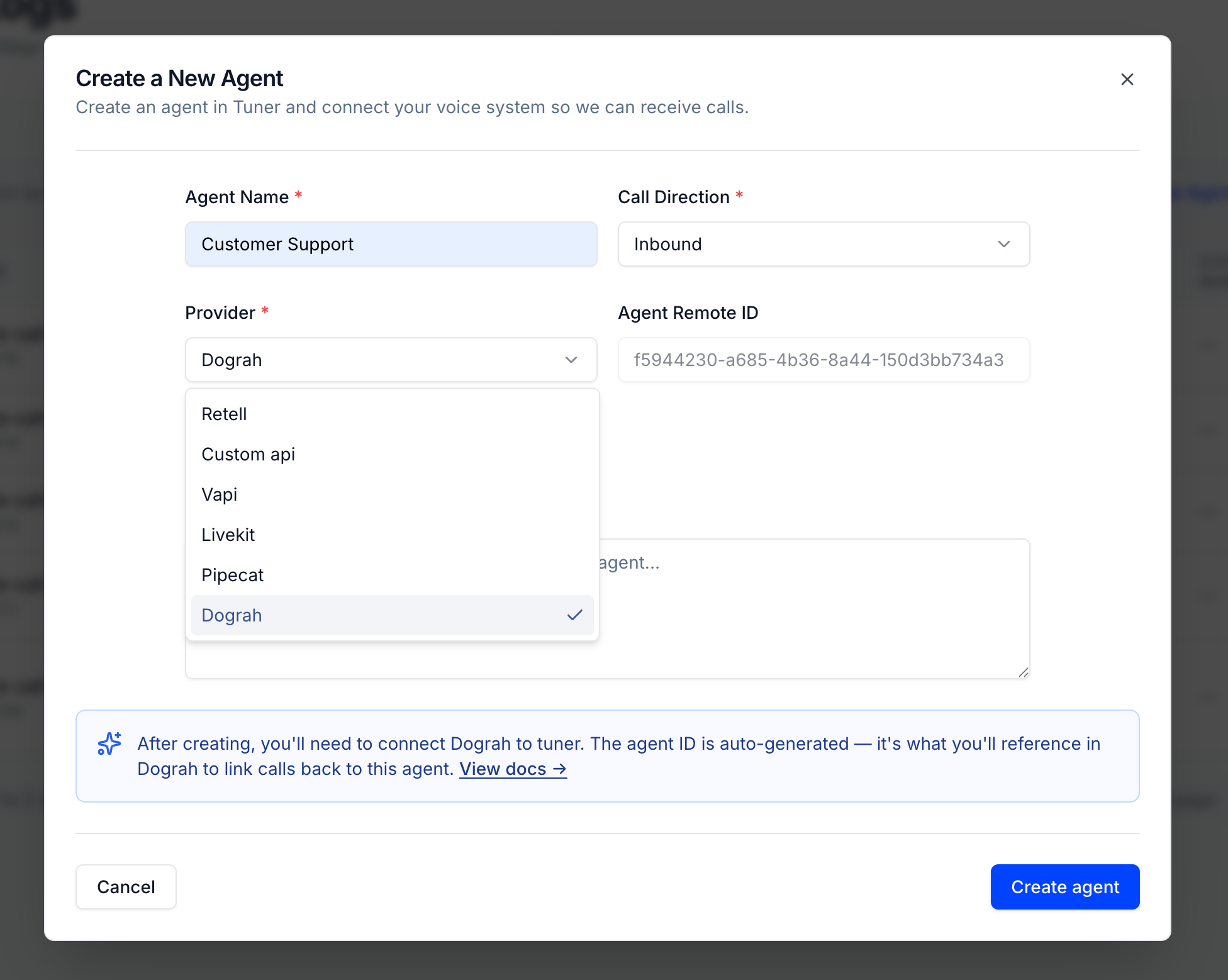

Log in to Tuner and create a new agent. When configuring the agent, set the Provider to Dograh. Enter your Agent Name and choose the Call Direction (Inbound or Outbound) for your setup. The Agent Remote ID is auto-generated after you create the agent.

Create a New Agent modal in Tuner — set Provider to Dograh

2. Gather your Tuner credentials

You’ll need three values from your Tuner account:

Credential	Where to find it
Agent ID	Agent Settings → Agent Connection → Agent Remote ID
Workspace ID	Workspace Settings → General Settings → Workspace ID
API Key	Workspace Settings → Tuner API Key

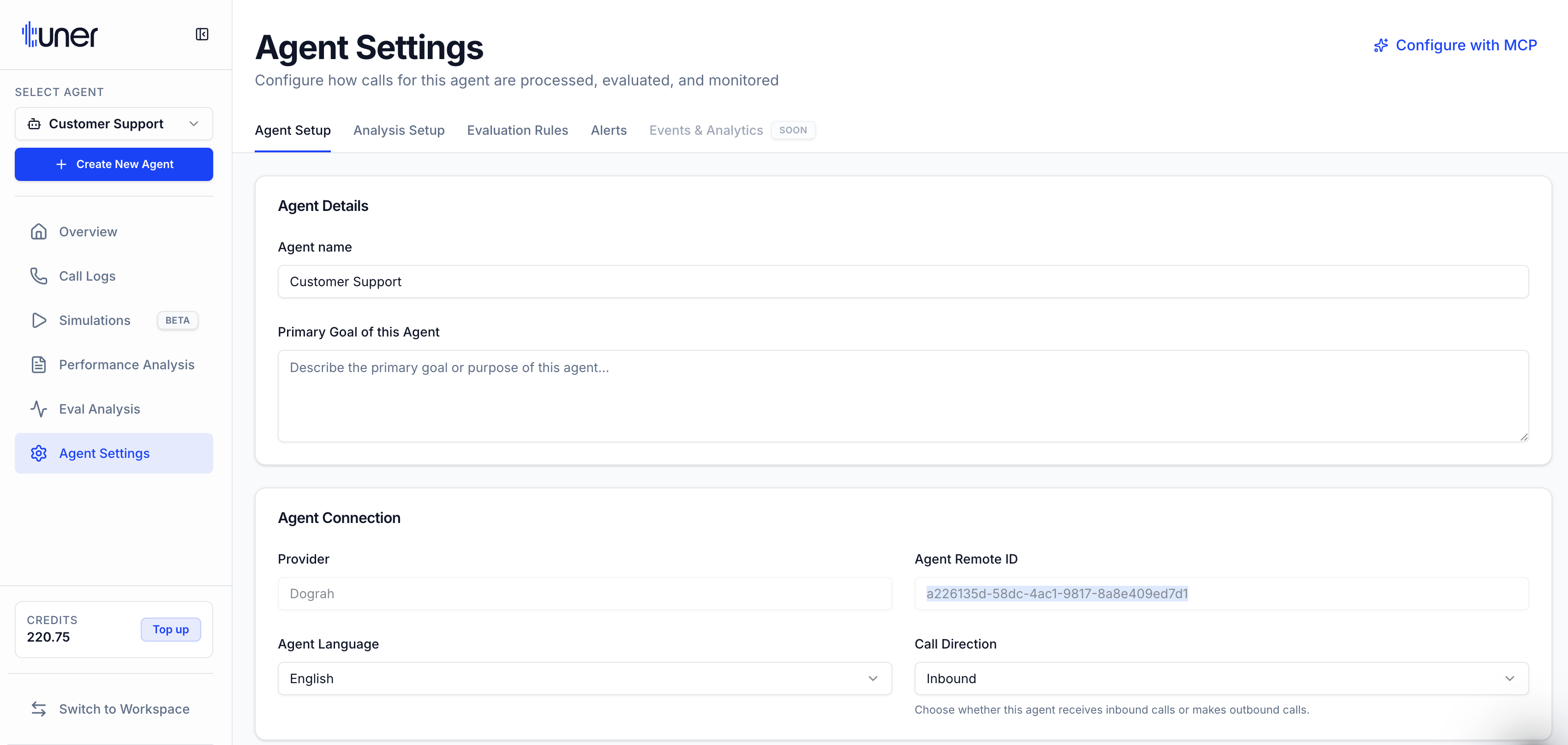

Agent Remote ID — open Agent Settings for your agent:

Tuner Agent Settings showing Agent Remote ID

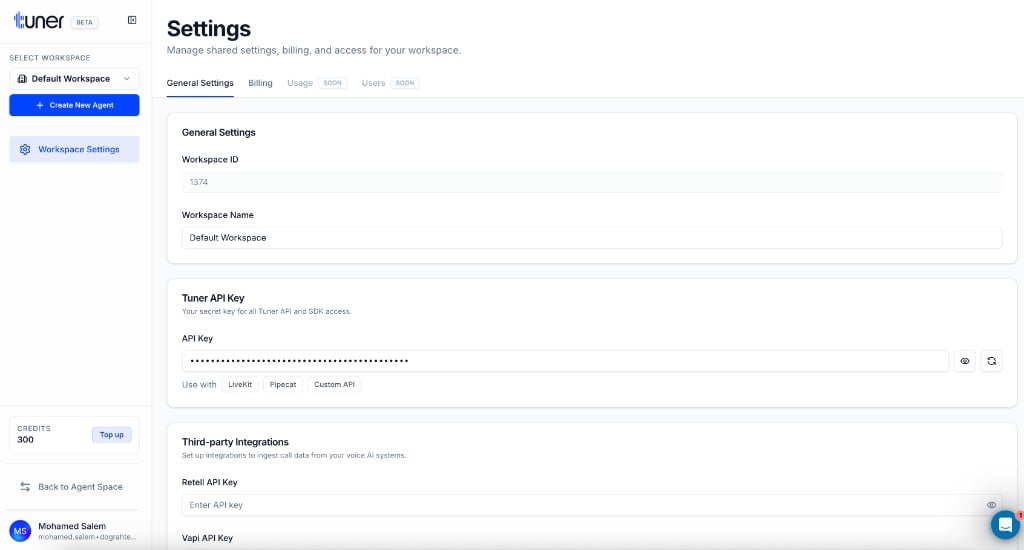

Workspace ID and API Key — open Workspace Settings:

Tuner Workspace Settings showing Workspace ID and API Key

3. Add the Tuner node to your workflow

In your AiLunaPro workflow editor, click Add node and scroll to the Integrations section. Select Tuner.

AiLunaPro voice workflow builder — click Add node

Scroll to Integrations and select Tuner:

AiLunaPro Integrations panel showing QA Analysis, Tuner, and Webhook

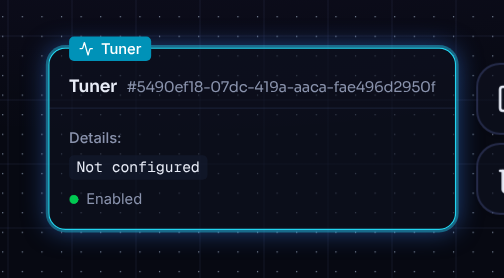

The node appears on your canvas with a Not configured badge:

Tuner node on the canvas showing Not configured

4. Configure the node

Click on the Tuner node and fill in the following fields:

Tuner Agent ID — The Agent Remote ID from Tuner
Tuner Workspace ID — Your numeric workspace ID
Tuner API Key — Your workspace API key
Enabled — Toggle on to activate the export

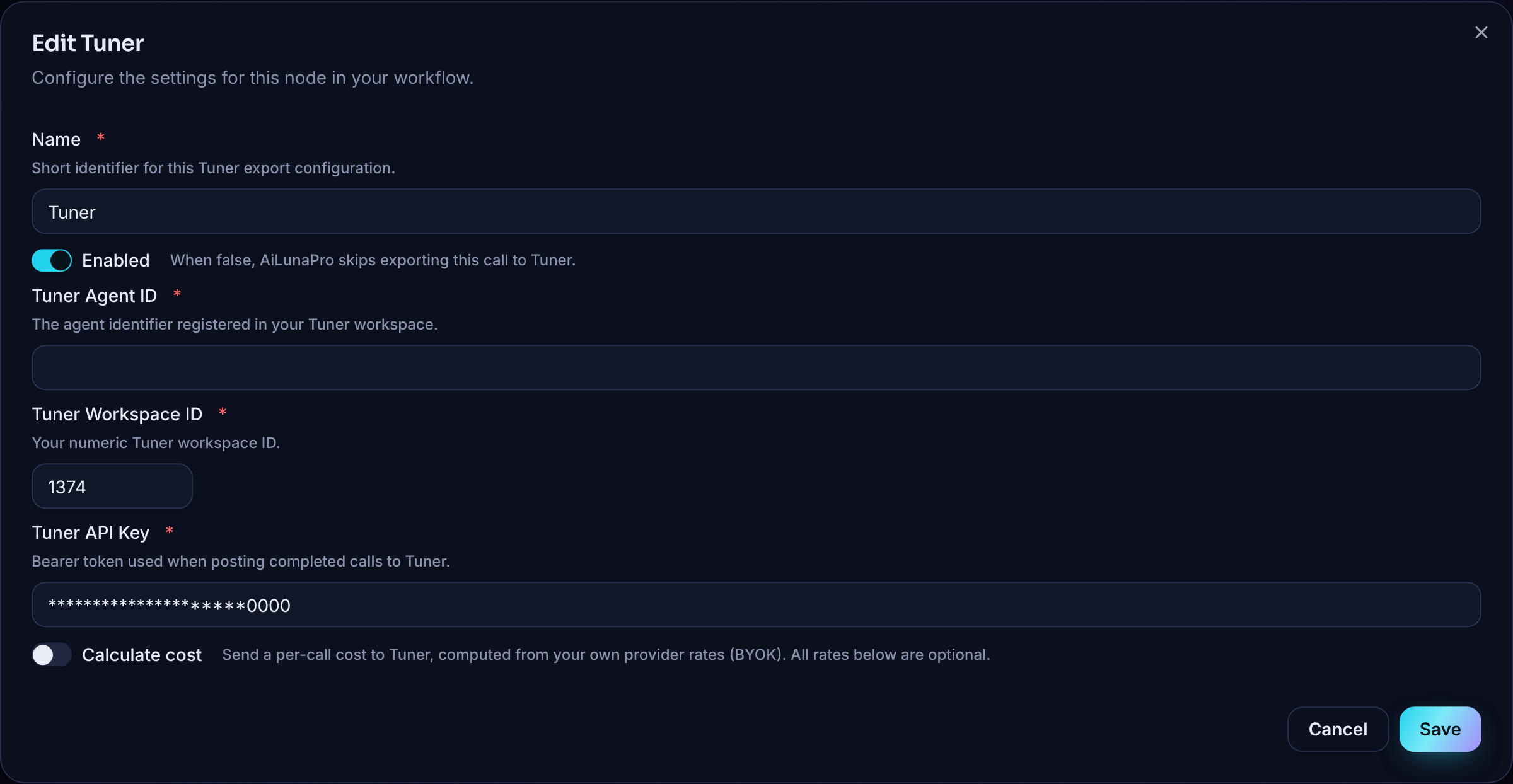

AiLunaPro Edit Tuner modal with credential fields and Enabled toggle

Click Save, then Publish your workflow.

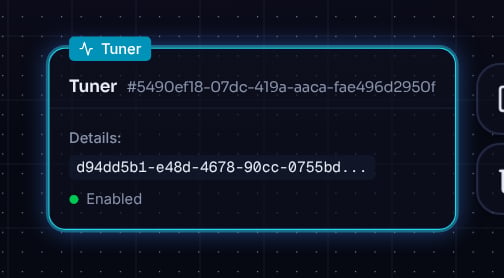

Tuner node on the canvas showing configured and enabled

5. Verify the connection

Make a test call through your agent. Once the call completes, check the Call Logs tab in your Tuner agent dashboard. The call should appear within a few moments.

Simulations

Everything above sends real calls to Tuner. Simulations run the other direction: Tuner places a call into your agent over SIP, plays the part of a caller following a generated scenario, and scores the result. Your agent answers exactly as it would for a customer. AiLunaPro does not speak SIP itself — Cloudonix does it on AiLunaPro’s behalf. So the address Tuner dials belongs to Cloudonix, and what you set up below is a route through it to one specific agent.

Simulations use the inbound path, which runs on the Cloudonix SIP domain AiLunaPro provisions for every organization. You do not need a SIP carrier or a phone number — unlike outbound calling, which requires your own trunk. See AiLunaPro SIP.

Before you start

The Tuner node configured and enabled on your workflow, as set up above
In Tuner, the same agent with its Call Direction set to Inbound
An agent that already works — test it from the agent editor first

An inbound simulation only attaches to its scenario when the Tuner agent’s call direction is Inbound. Set to Outbound, Tuner matches the returned call on a different field and files it as ordinary traffic instead.

1. Add an extension for simulations

Go to Telephony configurations and open AiLunaPro Cloudonix SIP. Under Phone numbers, choose Add phone number and enter a short extension such as 9001. You do not need a real phone number. That field accepts SIP URIs and plain extensions alongside PSTN numbers, and an extension is the simplest thing to point a simulation at. AiLunaPro registers it with Cloudonix for you.

2. Point the extension at your agent

Edit the extension you just added, set its Inbound workflow to the agent that should answer, and save. This is the step that tells Cloudonix where to route calls for that extension.

3. Publish the workflow

In the workflow editor, choose Save, then Publish.

Inbound calls always run the published version of a workflow, never the draft. If the Tuner node is only in your draft, calls will connect and the conversation will happen normally — but nothing will ever reach Tuner, and no error appears anywhere.

4. Build the SIP URI

Expand SIP connectivity on the configuration page, choose your region, and copy the inbound hostname. Combine it with the extension from step 1:

sip:9001@a1b2c3d4-0000-0000-0000-9f8e7d6c5b4a.sip.cloudonix.net
    └─┬─┘ └──────────────────────┬───────────────────────────┘
   extension              inbound hostname

Part	Where to get it	Notes
Extension	Phone numbers — the entry from step 1	Must match exactly. This decides which agent answers.
Inbound hostname	SIP connectivity → Hostname	Unique to your organization, and changes with the region.
Port	SIP connectivity → Ports	Omit only when it is `5060`; otherwise required.

Set the region before copying anything — every value on the panel is region-specific, and the port changes with it:

Region	Hostname ends with	Port	Include the port?
Global	`.sip.cloudonix.net`	`5060`	Optional — it is the default
India	`.in.dimi.tel`	`9060`	Required
UAE	`.uae.dimi.tel`	`9081`	Required

On India or UAE, leaving the port off sends the call to port 5060, where nothing is listening — and the failure looks like an unreachable agent rather than a wrong address. Add :9060 or :9081 to the URI.

Your inbound hostname accepts calls without a password — being unguessable is what protects it. Treat it as sensitive and share it only with systems that need to call your agents.

5. Save the URI in Tuner

In Tuner, open Agent Settings → SIP Settings, paste the address into SIP URI, and choose Verify & Save. Tuner immediately places a short test call, so this single action checks the whole path. Leave Username and Password empty — AiLunaPro’s inbound endpoint does not use SIP authentication.

Known issue in Tuner. With both auth fields blank, verification currently fails with “endpoint did not answer”. Entering any non-empty values — for example tuner and tuner — works around it. AiLunaPro never checks them, so the values are irrelevant. Clear both fields once Tuner ships the fix.

6. Run a simulation

Start a run from Tuner’s Simulations tab. Each scenario becomes a real call into your agent, and completed calls appear in that table with transcript, latency, and evaluation results.

How calls are matched to scenarios

Nothing to configure — this is automatic. Cloudonix reports the caller’s SIP call id to AiLunaPro, and AiLunaPro includes it when it exports the finished call. Tuner uses it to attach the call to the scenario that placed it. Without it, the call would still be ingested, just filed as ordinary production traffic.

Disabling the integration

To temporarily stop exporting calls to Tuner, open the Tuner node configuration and toggle Enabled off. Your credentials are preserved — toggle it back on anytime to resume.

Troubleshooting

Issue	Solution
Calls not appearing in Tuner	Verify all three credentials are correct with no extra whitespace
Node shows “Not configured”	Open the node and fill in Agent ID, Workspace ID, and API Key
Workflow not sending data	Make sure the workflow is published, not just saved as a draft
Wrong agent in Tuner	Confirm the Tuner agent’s Provider is set to Dograh

Simulation issues

Issue	Solution
`603 Declined`	Cloudonix found the route but could not fetch call instructions from AiLunaPro
”Endpoint did not answer” on Verify & Save	With blank auth fields this is the known Tuner issue. Otherwise confirm the extension exists, has an inbound workflow assigned, and that the region’s port is in the URI
Agent answers but nothing reaches Tuner	The Tuner node is not in the published version of the workflow. Publish and try again
Calls land in Call Logs instead of Simulations	Confirm the Tuner agent’s Call Direction is Inbound
A `422` logged after Verify & Save	Harmless. The verification call lasts about a second with no conversation, so there is no transcript for Tuner to accept

Learn more

Tuner — The observability, simulation, and testing layer for voice
Tuner documentation — Complete Tuner platform docs
